INFiLED X-Series Flex – 2.9mm

Product Description

Introducing the INFiLED Flex 2.9mm LED video panel. The first high resolution LED panel that truly flexes, bends and offers the maximum curves. Up until now, making curved video walls and shapes could only be achieved with LED curtains or by incrementally connecting flat panels at the joints with an adjustable curving mechanism.

The tiles are constructed in columns that hinge, and horizontal modules that flex, for a true seamless effect. This allows for super aggressive convex and concave curves for maximum creativity.

Take your creative stage and exhibit designs to the next level! Create new, unique shapes and aggressive curves like:

  • Waves

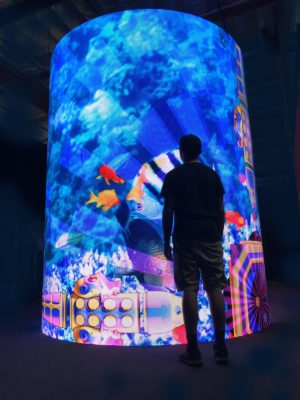

  • Cylinders
  • Archways
  • Tunnels
  • Convex
  • Concave

The INFiLED Flex LED panel possesses a near fine pixel pitch of 2.9mm, allowing for an incredibly crisp display, and vivid, high contrast images that can actually be molded and bent to your specifications. Unleash your creativity and design video walls and booths that were never before possible, until now! Explore our client work to see our products in action.

  1. Processor: Novastar
  2. Dimensions: 500×500
  3. Two-way curvable LED panel
  4. Angle adjustment is easy and fast
  5. Bend angle can reach up to 20° with 5 incremental levels.
  6. Patented one-action locking mechanism with positioning pins.
  7. Magnetic connection from panel-to-panel.

Parameter

Value

Pixel Pitch 2.9mm
Panel Size W500m×H500mm×D84mm
Brightness >1200 nits
Processor Novastar
DOWNLOAD SPEC SHEET



Additional information

Weight 19.62 lbs
Dimensions 3.31 × 19.69 × 19.69 in
